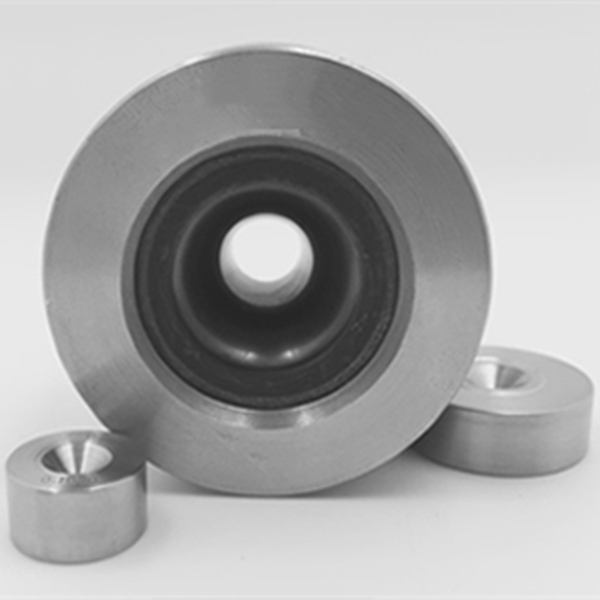

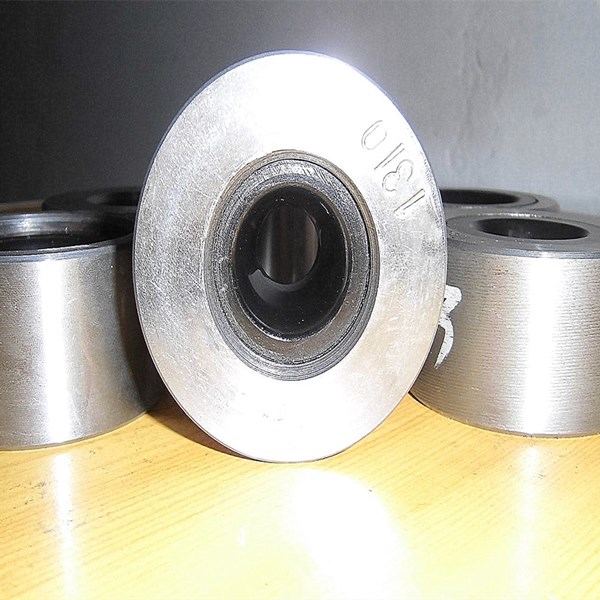

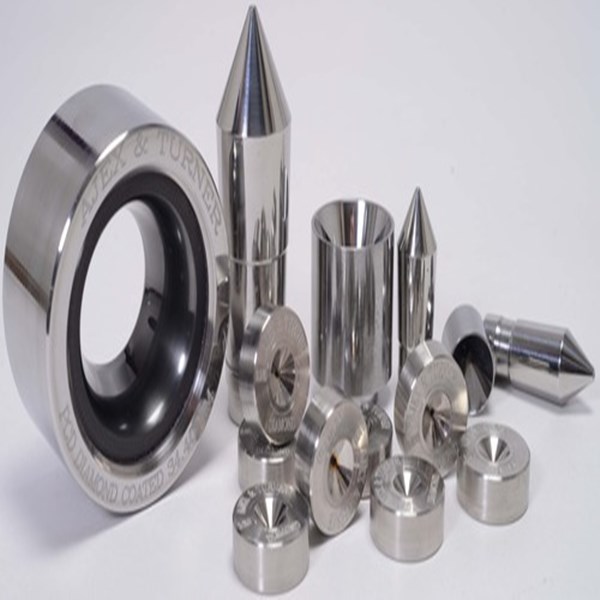

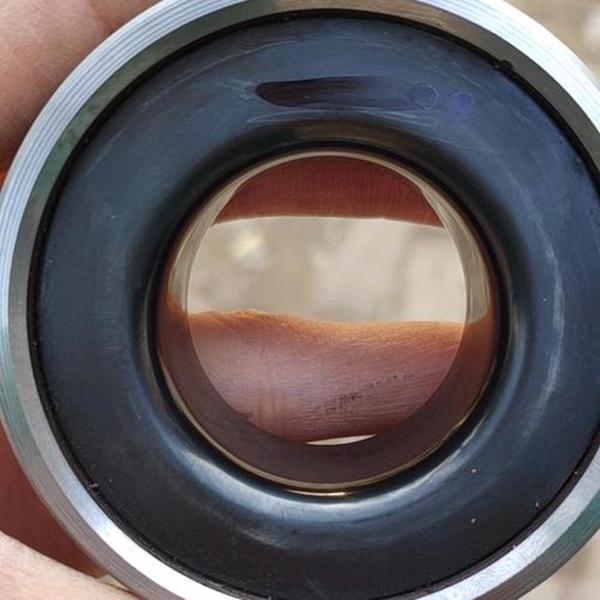

CVD Wire Drawing Dies

Introduction

CVD diamond coating drawing die due to a good performance and wear resistance, low surface roughness of the wire drawing, but drawing die CVD coating production process is complex, difficult process, high cost; when the coating abrasion After the mold will quickly wear, not only difficult to ensure processing quality, but can not be reused, it can only be scrapped.

When drawing a small diameter wire, CVD diamond coating to overcome the natural diamond die mold anisotropy, but also has excellent strength and hardness, drawing the highest yield, surface quality meet the requirements. Test proved, CVD diamond coating life drawing die mold identical to the natural diamond, high qualified products, surface quality than domestic polycrystalline diamond. Thus, for small diameter wire drawing, CVD diamond coating drawing die is an ideal choice.

Features

1.No special cooling, water cooling can ensure long life;
2.Long life, greatly reducing the frequency of die change;
3.Ultra-fine nano-level polished surface improves wire quality;
4.Improve drawing speed, ultra high-speed drawing, improve production efficiency;
5. Special pre-treatment technology to create super adhesion strength, extended die life;
6.No special lubricating, clean the lubricating medium to achieve both long dies service.

Our company set up an advanced, world-class testing and inspect center for PCD dies, to check the quality of PCD die blanks. With the development of test center, we accumulate a lot of experience on PCD die blanks, which will be more helpful in the further R&D development. Meanwhile, we can supply technical supports to customer when they met issues.

We can supply full line services in PCD die blanks, PCD semi-finished dies, CVD dies and finished dies. We can supply overall solutions to customers. You will enjoy your buying convenience.

Application

Copper wire, Aluminum wire, Stainless steel wire, Coated stainless steel wire, Tungsten wire, Molybdenum wire, Welding wire, Large diameter tubes etc.
